Cartoning Machine

Cartoning Machine Manufacturer

  • Full Automatic Box Bottle Cartoning Packing Machine

    Full Automatic Box Bottle Cartoning Packing Machine

    Eigenschaften:
    1. diese Maschine ist eine vollautomatische Stand-alone oder kontinuierlichen Einsatz von Papier Kartonierung Ausrüstung, alle Aktionen sind mechanische Zahnräder, Nocken, Pendel, Übertragung abgeschlossen ist, mit schneller Geschwindigkeit, stabilen Betrieb und so weiter, sondern auch zu erreichen Multi-Spezifikation Anpassung der Nutzung.
    2. nehmen Servo + SPS-Steuerung + Mensch-Maschine-Schnittstelle Betrieb auf verschiedene Parameter, bequemer und intuitiver Überwachung der Betriebsbedingungen, Fehlerüberwachung Pop-up-Fenster Display, schnell und einfach zu lösen verschiedene Fehler.
    3. nach verschiedenen Produktgrößen mit der einfachsten Skala Kennzeichnung Design-Struktur, in den Ersatz von verschiedenen Spezifikationen, kann effektiv zu erreichen schnelle Anpassung hergestellt werden kann.
    (4) in der Touch-Screen-Set die relevanten Daten hergestellt werden können, Geschwindigkeit einstellbar Bereich von 10 ~ 100 Pakete / min.
    5. die Formung Spur dieser Maschine kann mit positiven und negativen Spur nach den Anforderungen der verschiedenen Produkte ersetzt werden, um maximal die Anforderungen der Kunden zu erfüllen.
    (6) das Schild nimmt europäischen Standard-Aluminium-Profil und PC-Türplatte Design, und der obere Teil nimmt Aluminiumprofil und PC-Platte, um das Schild zu bilden, die eine sichere und schöne Rolle spielt.

    MAIN TECHNICAL PARAMETERS
    Model: JW-90 Cartoning Machine
    Packing speed: (10 - 100) bag/ min
    Carton specifications: L (60 - 200) * W (20 - 85) * H (20 - 70)mm
    Carton Material: 200-300g (White Card Stock) or 250-350g ( Grey Board )
    Input power: Three - phase Four - wire 380V/ 50Hz
    Total power: 1.15 kw
    Equipment weight: 900 kg
    BOPP double-sided heat-sealing film(commonly known as smoke film)
    Inner hole of film roll: 70 Outer diameter: 300mm
    In the ever-evolving landscape of packaging machinery, Junwen proudly unveils the JW-90 Cartoning Machine—a technological marvel that promises to revolutionize the way products are packaged. This sophisticated solution is tailored to cater to diverse industries and operational needs, offering an array of features that embody efficiency, precision, and convenience.
    Engineering Excellence:
    At the core of the JW-90's design lies an intricate combination of mechanical gears, cams, rocker arms, and linkages that work in perfect harmony to orchestrate the packaging process. This ingenious configuration ensures rapid and stable operations, setting new benchmarks for efficiency. Whether operating as a standalone unit or integrated into an automated production line, the JW-90 delivers unrivaled performance.
    Advanced Control and Monitoring:
    Harnessing the power of servo control and PLC technology, the JW-90 places precision at your fingertips. The intuitive human-machine interface allows operators to seamlessly adjust various parameters, while real-time monitoring provides insights into the machine's operational status. The inclusion of fault alerts displayed through pop-up windows simplifies troubleshooting, ensuring downtime is minimized and efficiency maximized.
    Streamlined Adjustments for Versatility:
    Changing specifications to accommodate different product sizes has never been easier. The JW-90 employs a straightforward scale marking system, enabling swift adjustments when transitioning between production runs. This streamlined process ensures that your packaging setup remains adaptable to the evolving demands of the market.
    Customizable Production Speed:
    With a production speed range of 10 to 100 packages per minute, the JW-90 empowers manufacturers to fine-tune their operations to align with varying production requirements. This flexibility is a testament to the machine's ability to adapt to the changing pace of modern business.
    Dynamic Forming Track Adaptation:
    The JW-90 stands out with its unique forming track adaptability. This dynamic feature allows for seamless transitions between forward and reverse tracks, catering to an array of product requirements. This versatility ensures that your packaging process is optimized for the specific needs of your products.
    Safety and Aesthetics Unite:
    Safety takes precedence in the JW-90's design, evident in its meticulously crafted protective cover. Combining European-standard aluminum profiles with PC door panels, this cover provides both comprehensive protection and visual elegance. The upper section, crafted from aluminum profiles and PC panels, ensures the safety and aesthetic integrity of the machine.
    As a pioneer in the packaging industry, Junwen's commitment to innovation shines through with the JW-90 Cartoning Machine. This exceptional solution encapsulates our dedication to engineering excellence, operational efficiency, and user-centric design. The JW-90 promises to redefine packaging processes, elevate product presentation, and maximize operational safety. Embrace the future of packaging with Junwen's JW-90 and embark on a journey towards unprecedented packaging excellence.
  • JW-160B type threedimensional transparent film folding and wrapping machine

    JW-160B type threedimensional transparent film folding and wrapping machine

    1. This machine is a fully automatic high-speed stand-alone transparent film packaging equipment, adopting flat-push packaging mode, all wrapping and heat sealing actions are completed by mechanical gears, cams, and connecting rod drive, with fast speed, stable operation, and other characteristics.
    2. Replacement of different size molds can pack different size products, adopting a new simple design structure, which makes the replacement of molds easier and faster.
    3. Adopt a frequency converter to adjust the packing speed, and adjust the production speed according to different product sizes, adjustable range of 10~150 packages/minute.
    4. According to the need of the product, the back channel can increase the two sides of the ironing mechanism with the use of the six sides of the product are ironing wrinkles effect is more perfect.
    5. Simple and quick disassembly and installation of the pull-line function, easy to use a variety of anti-counterfeiting easy to pull the line function, can play a role in anti-counterfeiting, has been unsealed.
    6. Conveyor feeding adopts a manual discharging mechanism, which is convenient for fast feeding to meet the production speed.
    7. It is equipped with a jamming overload protection device and a double-layer air-blowing auxiliary film-lowering device.

    MAIN TECHNICAL PARAMETERS
    Model: JW-160-B Transparent film 3D packaging machine
    Packing speed: Single box film per minute (10 - 150)
    Carton specifications: L (30-170) * W (20-80) * H (6-30)mm
    Input power: Two-phase Three- wire 220V/ 50Hz
    Total power: 4.2kw
    Heat sealing temperature: 110-180 ℃
    Equipment weight: 450kg
    Packaging material: BOPP double-sided heat-sealing film(commonly known as smoke film)
    Inner hole of film roll: 70 Outer diameter: 300mm, various colors of self-adhesive paste easy pull line
    At the heart of the JW-160-B is a commitment to delivering unparalleled performance and aesthetics. This fully automated, standalone machine is designed to cater to a diverse range of industries, where product presentation and protection are paramount. Let's delve into the myriad features that set the JW-160-B apart from the competition.
    Engineering Excellence:
    The JW-160-B's remarkable performance is underpinned by an ingenious mechanical drive system. With mechanical gear, cam, and linkage technology, the machine achieves fluid and rapid wrapping and heat-sealing actions. This distinctive flat-push packaging methodology redefines efficiency and consistency, ensuring that your products are packaged with utmost precision and speed.
    Adaptability Redefined:
    One of the machine's standout features is its adaptability. By effortlessly accommodating different mold specifications, the JW-160-B can package an array of product sizes. The streamlined design not only enhances the machine's aesthetic appeal but also simplifies mold replacement, saving you valuable time and resources.
    Tailored Speed Control:
    Flexibility in production is a hallmark of the JW-160-B. Its integrated frequency converter allows you to adjust packaging speeds according to product dimensions. With a versatile speed range of 10 to 150 packages per minute, you have the power to fine-tune your production process to meet demand variations effectively.
    Unmatched Finishing Touches:
    Imagine a packaging solution that ensures the perfection of your products' appearance. The optional dual-sided embossing unit can be seamlessly integrated, guaranteeing impeccably flat and crease-free surfaces on all six sides of your products. This level of precision takes your packaging aesthetics to the next level, leaving a lasting impression on your customers.
    Security and User-Friendly Design:
    In an era where consumer trust is paramount, the JW-160-B incorporates a user-friendly quick-detach pull-tab feature. This innovation not only adds an extra layer of security by acting as an anti-counterfeit measure but also provides clear evidence of tampering, instilling confidence in both you and your customers.
    Effortless Material Handling:
    The manual feeding mechanism has been thoughtfully designed for ease of use. Loading materials swiftly and efficiently is critical for maintaining uninterrupted production. The JW-160-B's feeding mechanism ensures seamless material replenishment, supporting your operational efficiency.
    Safety and Efficiency Synergy:
    Safety is of paramount importance in any manufacturing process. The JW-160-B incorporates advanced features like the smart overload protection system and the double-layer air-assisted film feeding device. These innovations not only contribute to the machine's reliability but also enhance operator safety, fostering a secure and productive working environment.
    In the ever-evolving landscape of packaging technology, the JW-160-B Transparent Film 3D Packaging Machine stands as a testament to Junwen's unwavering commitment to innovation. This remarkable solution empowers businesses across industries to streamline their packaging operations, enhance product presentation, and maintain the highest standards of quality and security.
  • Horizontal Automatic Cartoning Box Packing Machine

    Horizontal Automatic Cartoning Box Packing Machine

    1. This machine is a full-automatic stand-alone or continuous use of paper cartooning equipment, all actions are mechanical gears, cams, pendulum, and transmission is completed, with fast speed, stable operation and other characteristics, but also to achieve multi-specification adjustment of the use.
    2. Adopt servo + PLC control system + man-machine interface operation to adjust various parameters, more convenient and intuitive monitoring of the operating conditions, fault monitoring pop-up window display, quick and easy to solve various faults.
    3. According to different product sizes using the simplest scale labelling design structure, in the replacement of different specifications, can effectively achieve rapid adjustment can be produced.
    4. In the touch screen set the relevant data can be produced, a speed adjustable range of 10 ~ 100 packages/min.
    5. The moulding track of this machine can be replaced with positive and negative tracks according to the requirements of different products to maximally meet the requirements of customers.
    6. The shield adopts a European standard aluminium profile and PC door plate design, and the upper part adopts an aluminium profile and PC plate to form the shield, which plays a safe and beautiful role.

    MAIN TECHNICAL PARAMETERS
    Model: JW-170 Cartoning Machine
    Packing speed: (10 - 100) bag/ min
    Carton specifications: L (60 - 200) * W (40 - 165) * H (20 - 65) mm
    Carton Material: 200-300g (White Card Stock) or 250-350g ( Grey Board )
    Input power: Three - phase Four - wire 380V/ 50Hz
    Total power: 1.15 kw
    Equipment weight: 900 kg
    BOPP double-sided heat-sealing film(commonly known as smoke film)
    Inner hole of film roll: 70 Outer diameter: 300mm
    Junwen proudly presents the JW-170 Cartoning Machine, a true embodiment of excellence in packaging technology. Designed to redefine packaging processes, this machine seamlessly blends innovation, efficiency, and user-centric design to create an unparalleled packaging experience. Tailored for both standalone and inline operations, the JW-170 is set to transform the way products are packaged.
    1. Engineering Excellence:
    The JW-170 Cartoning Machine operates on a sophisticated mechanical configuration, driven by precision mechanical gears, cams, rocker arms, and linkages. This harmonious interplay of components ensures rapid and stable operations, setting a new benchmark for efficiency in the industry. Whether operating in isolation or integrated into a production line, the JW-170 delivers unmatched performance.
    2. Intelligent Control and Monitoring:
    Powered by a combination of servo control, PLC technology, and an intuitive human-machine interface, the JW-170 provides unrivaled control over various parameters. This sophisticated design not only facilitates seamless adjustments but also enables real-time monitoring of operational status. Fault alerts displayed through pop-up windows streamline troubleshooting, reducing downtime and enhancing operational efficiency.
    3. Streamlined Adjustments for Versatility:
    In response to varying product sizes, the JW-170 features a simplified scale marking system that facilitates quick adjustments when switching between production runs of different specifications. This intuitive system ensures rapid adaptability, allowing manufacturers to stay agile in an ever-changing market landscape.
    4. Customizable Production Speed:
    With a production speed range of 10 to 100 packages per minute, the JW-170 empowers manufacturers to tailor their operations to meet dynamic production demands. This adaptability ensures that efficiency and quality are maintained even in the face of evolving market conditions.
    5. Dynamic Forming Track Adaptation:
    A hallmark of the JW-170 is its dynamic forming track adaptability. This innovative feature enables swift transitions between forward and reverse tracks, catering to the diverse requirements of different products. By maximizing adaptability, the JW-170 ensures that your packaging process is optimized for various products and configurations.
    6. Aesthetic and Functional Protection:
    Safety and aesthetics converge harmoniously in the JW-170's protective cover. Crafted using European-standard aluminum profiles and PC door panels, the cover ensures both comprehensive protection and visual appeal. The upper section, composed of aluminum profiles and PC panels, not only enhances operational safety but also contributes to the machine's overall aesthetic.
    As a pioneer in the packaging industry, Junwen introduces the JW-170 Cartoning Machine—a testament to our commitment to innovation, operational excellence, and user-centric design. This cutting-edge solution empowers businesses to enhance their packaging operations, adapt to changing market demands, and maintain the highest standards of efficiency and safety. Embrace the future of packaging technology with the JW-170 and embark on a journey towards unparalleled packaging excellence.
  • Automatic Transparent film 3D packaging machine

    Automatic Transparent film 3D packaging machine

    1. This machine is a fully automatic medium-speed single or continuous use of three-dimensional transparent film packaging equipment, the use of flat-push packaging mode, wrapping, and heat sealing action are mechanical sprocket, cam, linkage, cylinder drive to complete, with fast speed, stable operation, and other characteristics.
    2. Replacement of different size molds can pack different size products, adopting a new simple design structure, which makes the replacement of molds easier and faster.
    3. Adopt servo control system + human-machine interface operation to adjust various parameters, according to different product sizes in the touch screen to set the relevant data that can be produced, the speed can be adjusted from 10 to 50 packages/min.
    4. The molding track is equipped with point ironing + flat ironing + up and down shaping beauty device, which makes the product more fitting and beautiful after wrapping the film.
    5. Simple and fast dismantling and pulling function, easy to use various anti-counterfeiting unsealing easy to tear the line function, can play the role of moisture has been unsealed.
    6. Automatic conveying and feeding and manual conveying and discharging are two kinds of feeding mechanisms, automatic conveying and feeding can be connected with the fully automated unmanned production line to use.
    7. The automatic feeding mechanism has the function of stopping the machine without a box, and it is equipped with a protection device for the card box unpacking and the three-layer blowing-assisted film-unloading device.
    8. The protective cover is designed with a European standard aluminum profile and stainless steel door plate, and the upper part is made of an aluminum profile and PC board, which plays the role of safety and beauty.

    MAIN TECHNICAL PARAMETERS
    Model: JW-280-B Transparent film 3D packaging machine
    Packing speed: Single box film per minute (10 - 50)
    Carton specifications: L (50 - 280) * W (40 - 180) * H (20 - 80)mm
    Input power: Three- phase Five- wire 380V/ 50Hz
    Total power: 12.0 kw
    Heat sealing temperature: 110-180 ℃
    Equipment weight: 850 kg
    Packaging material: BOPP double-sided heat-sealing film(commonly known as smoke film)
    Inner hole of film roll: 70 Outer diameter: 300mm, various colors of self-adhesive paste easy pull line
    Unlock the future of packaging with the JW-280-B Transparent Film 3D Packaging Machine, a testament to Junwen's unwavering commitment to innovation and excellence. Tailored for medium-speed standalone and inline operations, this machine is a symphony of cutting-edge technology and user-centric design, revolutionizing the art of packaging.
    Precision Engineering:
    At the heart of the JW-280-B lies an intricately woven web of mechanical chain wheels, cam mechanisms, linkages, and pneumatic cylinders. This symphony of engineering ensures seamless wrapping and heat-sealing actions, resulting in impressive speeds and impeccable stability. The JW-280-B redefines packaging efficiency and reliability.
    Adaptive Modularity:
    A hallmark of versatility, the JW-280-B allows for effortless mold changes to accommodate diverse product sizes. This intuitive transition between molds enhances adaptability, ensuring that the machine can cater to a wide array of dimensions, meeting the dynamic demands of your production line.
    Controlled Precision through Servo Technology:
    Empower operators with precise control through the JW-280-B's servo control system, seamlessly integrated with a user-friendly human-machine interface. Adjusting parameters for distinct product sizes is as intuitive as configuring relevant data on the touchscreen, enabling production speeds ranging from 10 to 50 packages per minute.
    Elevated Aesthetics and Forming Innovation:
    Elevating your packaging presentation, the JW-280-B features a specialized forming track equipped with point embossing, top and bottom contouring, and beauty enhancement units. This orchestrated integration guarantees a snug fit and elevates product aesthetics, setting new benchmarks for packaging excellence.
    User-Focused Security and Practicality:
    Incorporating a swift-detach pull-tab feature, the JW-280-B boasts both tamper-evident assurance and moisture-resistant sealing. This dual-functionality innovation safeguards products against tampering and moisture intrusion, bolstering consumer confidence in the integrity of the contents.
    Seamless Material Handling:
    Addressing your operational needs, the JW-280-B integrates both automatic and manual feeding mechanisms seamlessly. Whether harmonizing with a fully automated production line or allowing for manual intervention, this machine streamlines material handling, maximizing operational efficiency.
    Intelligent Safety and Functionality:
    Safety takes precedence, as evident in the JW-280-B's automatic feeding system featuring a no-box stop function. Additional features, including box ejection protection and a triple-layer air-assisted film feeding mechanism, contribute to a secure and optimized production environment.
    Aesthetic and Functional Protection:
    The JW-280-B seamlessly merges aesthetics with safety, featuring a European-standard aluminum frame and stainless steel door panels. The upper portion, comprising aluminum profiles and PC panels, offers a visually appealing protective cover that augments operational safety while elevating the machine's overall visual appeal.
    With the JW-280-B Transparent Film 3D Packaging Machine, Junwen redefines packaging excellence. This transformative solution encapsulates Junwen's dedication to advancing packaging technology, enhancing packaging processes, elevating product presentation, and prioritizing operational safety.
  • JW-400-B type (three-dimensional transparent film folding and wrapping machine)

    JW-400-B type (three-dimensional transparent film folding and wrapping machine)

    1. This machine is a fully automatic medium-speed stand-alone or continuous use of three-dimensional transparent film packaging equipment, the use of flat-push packaging, wrapping and heat sealing action are mechanical sprockets, cams, connecting rods, cylinder drive to complete, with stable operation and other characteristics.
    2. This machine mainly packs big sets of box products, and can pack different sizes of products by replacing different sizes of moulds, and adopts a new simple design structure, which makes the replacement of moulds simpler and faster.
    3. Adopting servo control system + human-machine interface operation to adjust various parameters, according to different product sizes in the touch screen to set the relevant data that can be produced, the speed can be adjusted from 10 to 40 packages/min.
    4. The moulding track is equipped with point ironing + flat ironing + up and down shaping beauty device, which makes the product more fitting and beautiful after wrapping the film.
    5. Simple and fast dismantling and pulling function, easy to use all kinds of anti-counterfeiting unsealing easy to tear the line function, can play the role of moisture-proof has been unsealed.
    6. Automatic conveying and feeding and manual conveying and discharging are two kinds of feeding mechanisms, automatic conveying and feeding can be connected with the fully automated unmanned production line to use.
    7. The automatic feeding mechanism has the function of stopping the machine without a box, and it is equipped with a protection device for the card box unpacking and the three-layer blowing-assisted film-removal device.
    8. The protective cover is designed with a European standard aluminium profile and stainless steel door plate, and the upper part of the cover is made of an aluminium profile and PC board, which plays the role of safety and beauty.
  • 160C

    160C

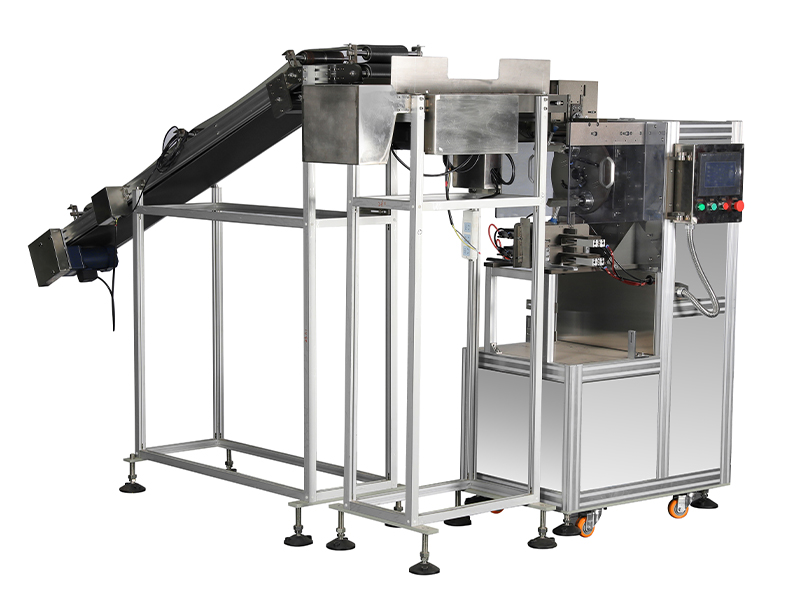

  • 170 digital chip machine

    170 digital chip machine

  • 170 Lining Machine

    170 Lining Machine

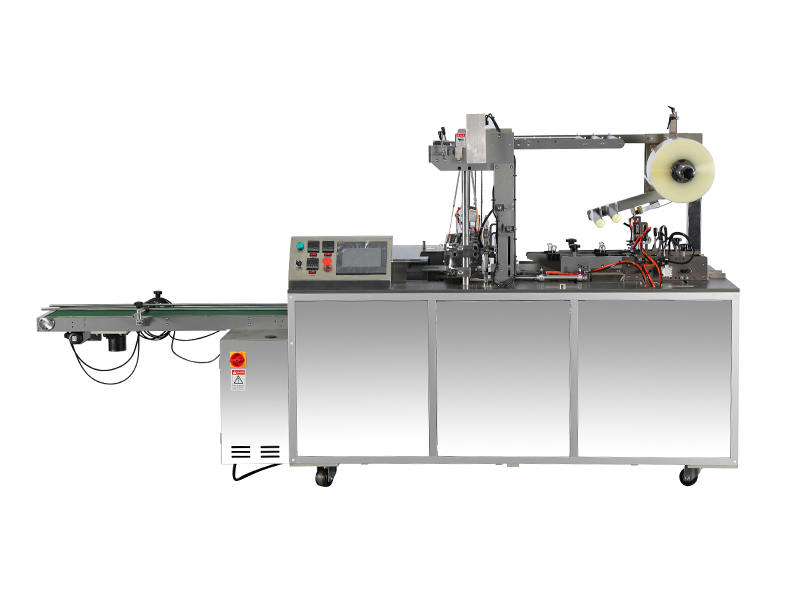

  • Type 270

    Type 270

  • Type 270 Pure Point

    Type 270 Pure Point

In a world where manufacturing demands are constantly evolving, our Cartoning Machine rises above the ordinary, offering a holistic solution that addresses the diverse challenges faced by clients. This technological masterpiece redefines the cartoning process, offering unparalleled efficiency, reliability, and versatility to elevate your packaging operations.
Intermittent Precision with PLC Control: The heart of our Cartoning Machine lies in its unique intermittent operation design, seamlessly managed by advanced PLC control. This integration ensures flawless coordination of tasks, such as box erection, loading, and sealing, resulting in a cohesive and streamlined packaging process. The inherent simplicity of its structure enhances operational reliability, while the user-friendly PLC interface facilitates easy customization and adjustments.
Swift Speed, Enduring Durability: The exceptional carton-loading speed of our machine is a hallmark of its efficiency. Despite its rapid pace, its components are engineered with meticulous attention to detail, minimizing mechanical wear and tear. This design not only ensures consistent high-speed performance but also guarantees the longevity of the machine, translating into substantial savings in maintenance costs over time.
Automated Vacuum Precision: Our machine boasts an automated vacuum-assisted loading system that guarantees precision and accuracy in carton presentation. The system's wide-angle carton opening mechanism ensures that each carton is flawlessly positioned for optimal product loading. This attention to detail results in a seamless and visually appealing packaging process.
Enhanced Product Safety: Safety is a paramount consideration in manufacturing. Our carton entry system operates intermittently, incorporating a push-and-load overload protection mechanism. This feature prevents excessive stress on both the cartoning machine and the products, ensuring that every item enters the carton with utmost care and security.
Effortless Adjustment and Maintenance: We understand the importance of operational flexibility. Our Cartoning Machine is designed with swift adjustments and maintenance in mind. Its intuitive design empowers your operators to effortlessly adapt the machine to accommodate varying packaging requirements, significantly reducing downtime and increasing overall efficiency.
Robust Framework and System Safeguards: The machine's robust framework, characterized by its superior strength and rigidity, forms the foundation for seamless operation. Within this framework, the primary drive motor and clutch-brake assembly ensure smooth transitions. The inclusion of a torque overload protection system adds an extra layer of security, disengaging the primary drive motor and transmission components in case of extreme loads, thereby preserving the machine's structural integrity.
Adaptable Customization: The flexibility of our Cartoning Machine knows no bounds. With its intuitive interface, operators can effortlessly adapt to changing packaging requirements. Whether you need to switch between box sizes or alter the packaging process for different products, our machine's adaptable nature ensures a seamless transition. This adaptability enhances your production agility, allowing you to meet the ever-changing demands of the market.
In conclusion, our Cartoning Machine stands as a testament to our unwavering commitment to precision engineering, operational excellence, and client-centric innovation. By investing in this advanced technology, you're investing in optimized packaging processes, reduced maintenance time, and elevated product quality. Join us in embracing the future of packaging solutions and take your operations to new heights of efficiency and safety. Your success is our mission, and our Cartoning Machine is the embodiment of that commitment.
